Innovations at recycling event : Metal recovery at IERC 2023

Bunting metal separation equipment at Zixtel including an Overband Magnet, Eddy Current Separator and Drum Magnet

Figure 1 - Waste Electrical and Electronic Waste (WEEE)

- © Paul Fears Photography

Bunting is one of the world’s leading designers and manufacturers of magnetic separators, eddy current separators, metal detectors and electrostatic separators. The Bunting European manufacturing facilities are in Redditch, just outside Birmingham, and Berkhamsted, both in the United Kingdom.

IERC 2023 is the leading event in the Circular Economy Electronics world. The event brings together more than 500 international professionals from production, design, promotion, business development, material supply, recycling, logistics and authorities.

Complete Metal Separation Solution

The process of electronics recycling involves many stages of size reduction, screening and material separation. Bunting provides metal separation solutions, including the coarse separation of ferrous and non-ferrous metals; stainless-steel and PCB separation; and the recovery of fine non-ferrous metals such as wires and electrical components.

The ultra-strong magnetic head pulley of the patented Stainless Steel Separator separates weakly magnetic shredded stainless steel. This produces a saleable product as well as removes the potentially damaging metal from the process. The Stainless Steel Separator also preferentially recovers printed circuit boards (PCBs).

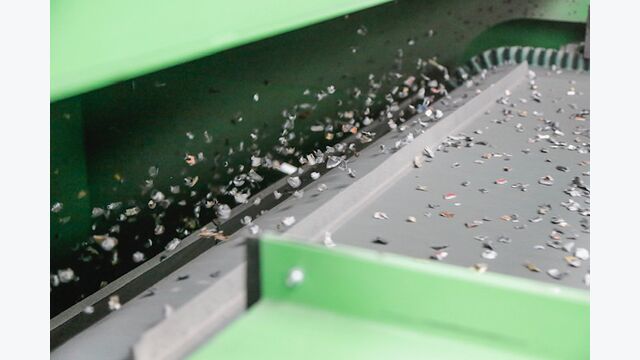

After stainless steel removal, Bunting’s Eddy Current Separators recover non-ferrous metals from the non-magnetic mix. The location and design of the Eddy Current Separator depends on the plant design and nature of the electrical waste. Specific models of Eddy Current Separators are designed to recover coarse or fine non-ferrous metals (i.e. prior to and post a secondary shredder).

Figure 2: Small non ferrous metals recovered from WEEE on an Eddy Current Separator

- © Bunting

The ElectroStatic Separator enables the final stage of fine non-ferrous metal recovery. This highly specialised technology induces an electrostatic charge into a conductive dry-liberated particle to achieve a separation.

With the range of metal separation technology located at Bunting’s Customer Experience Centre in Redditch, UK, electronic waste recyclers send material for testing to demonstrate the separation capabilities in terms of both recovery and purity.

Bunting’s team (on stand 33) at IERC 2023 includes European Managing Director Simon Ayling, Austria-based Central & North Europe Sales Manager Christopher Gabriel, and the specialist recycling representative for Germany, Austria and Switzerland Marcel Graef of 3SMI GmbH.
